D – MAX Extended Cab

MAXIMUM DURABILITY. MAXIMUM RELIABILITY. MAXIMUM CAPABILITY.

The new Isuzu D-MAX: we’ve changed our name, not our stripes.
The Isuzu D-MAX is the culmination of 40 years spent earning a reputation for durability, reliability and capability. Although the badge has changed to D-MAX, the global name for our legendary bakkie and our commitment to providing you with hardest working bakkies never will!

Value for Money

This model boasts class-leading Cost of Ownership figures due to its fuel efficient 2.5 litre diesel engine and top of the range 3l engine.

Smart Efficiency

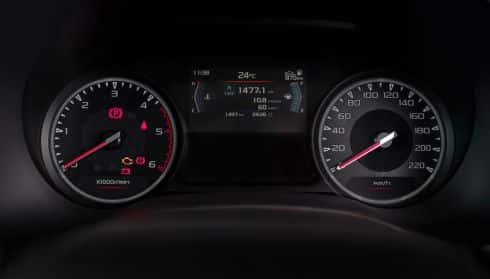

The newly designed instrument cluster features a shift indicator to tell you when it’s the optimal time to shift gear. Available on LX models.

Vehicle Safety

Travel in exceptional safety with Traction Control and Electronic Stability Control, including ABS, EBD and Brake Assist, as well as airbags for the driver and passenger on selected models.

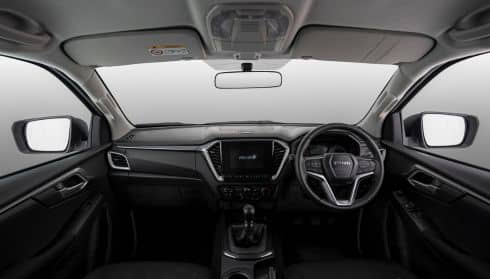

Technology and Convenience

State-of-the-art technology gives you music via USB and Bluetooth audio streaming, as well as added safety, with LED Daytime Running Lights.

COMPARE MODELS

Isuzu makes the impossible, possible, thanks to its low cost of ownership and legendary power.

TRANSMISSION

Transmission type - 5-Speed Automatic
Gear ratio: 1st - 3.52
Gear ratio: 2nd - 2.042
Gear ratio: 3rd - 1.4
Gear ratio: 4th - 1
Gear ratio: 5th - 0.716
Gear ratio: reverse - 3.224

FUEL CONSUMPTION

Combined cycle (l/100km) - 8.1
Combined CO2 emmisions (g/km) - 214
Fuel type / recommended grade - Diesel

ENGINE

Engine code - 4JK1-TC HO
Displacement (cc) - 2499
No. of cylinders - 4
Compression ratios - 18.1:1
Bore x stroke (mm) - 95.4 x 87.4
No. of valves - 16
Power (kW) @ r/min - 100 @ 3400
Torque (Nm) @ r/min - 320 @ 1800 - 2800
Turbocharger
Intercooler

DIMENSIONS

Length (mm) - 5294
Width (mm) - 1860
Width incl. mirrors (mm) - 1860
Height (mm) - 1790
Wheelbase (mm) - 3095
Track front / rear (mm) - 1570 / 1570
Ground clearance (mm) - 225
Loadbox length (mm) - 1795
Loadbox width (mm) - 1535
Loadbox depth (mm) - 470
Approach angle (o) - 30
Departure angle (o) - 22.7
Breakover angle (o) - 22.4
Wading depth (mm) - 600
Rear overhang (mm) - 1301

WHEEL / TYRES

Tyre size - 245/70R16
Wheel type / size - Steel 16" x 6.5J
Full size spare wheel / size - Steel 16" x 6.5J
Turning Circle: tyres (m) - 12.8
Turning Circle: body (m) - 13.5

MASS / CAPACITY

Gross Vehicle Mass (GVM) (kg) - 3000
Gross Combined Mass (GCM) (kg) - 5000
Tare mass (kg) - 1820
Payload (kg) - 1121
Towing capacity (kg): Unbraked trailer (#2) - 750
Towbar capacity / Rating (kg): Braked trailer (#2) - 2100
Fuel tank capacity (l) - 80

SAFETY FEATURES

Anti-Lock Brakes (ABS)
Electronic Brake-Force Distribution (EBD)
Brake Assist System (BAS)
Electronic Stability Control (ESC) with Traction Control
Hill Start Assist (HSA)
Hill Descent Control (HDC)
Side Impact Protection Bars
Height adjustable 3-point seatbelts
Seat belt pre-tensioners)
Collapsible steering column
Warning triangle kit

INFOTAINMENT

Audio input terminal: USB, auxiliary
No. of speakers - 2
Audio system - AM/FM Radio, CD player, USB, Clock, Bluetooth - Audio Streaming & Handsfree Phone

WARRANTY / SERVICE INTERVALS

Warranty & roadside assistance - 3 Years / 100 000 km
Service intervals - 12 Months/15 000 km

TRANSMISSION

Transmission type - 5-Speed Manual
Gear ratio: 1st - 4.008
Gear ratio: 2nd - 2.301
Gear ratio: 3rd - 1.427
Gear ratio: 4th - 1
Gear ratio: 5th - 0.744
Gear ratio: reverse - 3.651

FUEL CONSUMPTION

Combined cycle (l/100km) - 7.6
Combined CO2 emmisions (g/km) - 199
Fuel type / recommended grade - Diesel / Low Sulphur (50ppm)

ENGINE

Engine code - 4JK1-TC HO
Displacement (cc) - 2499
No. of cylinders - 4
Compression ratios - 18.1:1
Bore x stroke (mm) - 95.4 x 87.4
No. of valves - 16
Power (kW) @ r/min - 100 @ 3400
Torque (Nm) @ r/min - 320 @ 1800 - 2800
Turbocharger
Intercooler

DIMENSIONS

Length (mm) - 5294
Width (mm) - 1860
Width incl. mirrors (mm) - 2132
Height (mm) - 1790
Wheelbase (mm) - 3095
Track front / rear (mm) - 1570 / 1570
Ground clearance (mm) - 225
Loadbox length (mm) - 1795
Loadbox width (mm) - 1535
Loadbox depth (mm) - 470
Approach angle (o) - 30
Departure angle (o) - 22.7
Breakover angle (o) - 22.4
Wading depth (mm) - 600
Rear overhang (mm) - 1301

WHEEL / TYRES

Tyre size - 245/70R16
Wheel type / size - Steel 6.5J x 16
Full size spare wheel / size - Steel 6.5J x 16
Turning Circle: tyres (m) - 12.8
Turning Circle: body (m) - 13.5

MASS / CAPACITY

Gross Vehicle Mass (GVM) (kg) - 3000
Gross Combined Mass (GCM) (kg) - 5000
Tare mass (kg) - 1795
Payload (kg) - 1155
Towing capacity (kg): Unbraked trailer (#2) - 2100
Towbar capacity / Rating (kg): Braked trailer (#2) - 2100
Fuel tank capacity (l) - 80

SAFETY FEATURES

Anti-Lock Brakes (ABS)
Electronic Brake-Force Distribution (EBD)
Brake Assist System (BAS)
Electronic Stability Control (ESC) with Traction Control
Hill Start Assist (HSA)
Hill Descent Control (HDC)
Side Impact Protection Bars
Height adjustable 3-point seatbelts
Seat belt pre-tensioners)
Driver and front passenger airbags
Collapsible steering column
Warning triangle kit

INFOTAINMENT

Audio input terminal: USB, auxiliary
No. of speakers - 2
Audio system - AM/FM Radio, CD player, USB, Clock, Bluetooth - Audio Streaming & Handsfree Phone

WARRANTY / SERVICE INTERVALS

Warranty & roadside assistance - 3 Years / 100 000 km
Service intervals - 12 Months/15 000 km

TRANSMISSION

Transmission type - 6-Speed Manual
Gear ratio: 1st - 4.942
Gear ratio: 2nd - 2.43
Gear ratio: 3rd - 1.428
Gear ratio: 4th - 1
Gear ratio: 5th - 0.749
Gear ratio: 6th - 0.634
Gear ratio: reverse - 4.597

FUEL CONSUMPTION

Combined cycle (l/100km) - 7.7
Combined CO2 emmisions (g/km) - 203
Fuel type / recommended grade - Diesel / Low Sulphur (50ppm)

ENGINE

Engine code - 4JJ1-TC HO
Displacement (cc) - 2999
No. of cylinders - 4
Compression ratios - 17.3:1
Bore x stroke (mm) - 95.4x104.9
No. of valves - 16
Power (kW) @ r/min - 130 @ 3600
Torque (Nm) @ r/min - 380 @ 1800-2800
Turbocharger
Intercooler

DIMENSIONS

Length (mm) - 5294
Width (mm) - 1860
Width incl. mirrors (mm) - 2132
Height (mm) - 1790
Wheelbase (mm) - 3095
Track front / rear (mm) - 1570 / 1570
Ground clearance (mm) - 220
Loadbox length (mm) - 1795
Loadbox width (mm) - 1535
Loadbox depth (mm) - 470
Approach angle (o) - 30
Departure angle (o) - 22.7
Breakover angle (o) - 22.4
Wading depth (mm) - 600
Rear overhang (mm) - 1301

WHEEL / TYRES

Tyre size - 255/60R18
Wheel type / size - Alloy 7.5J x 18
Full size spare wheel / size - Alloy 7.5J x 18
Turning Circle: tyres (m) - 12.8
Turning Circle: body (m) - 13.5

MASS / CAPACITY

Gross Vehicle Mass (GVM) (kg) - 3100
Gross Combined Mass (GCM) (kg) - 6000
Tare mass (kg) - 1885
Payload (kg) - 1140
Towing capacity (kg): Unbraked trailer (#2) - 3500
Towbar capacity / Rating (kg): Braked trailer (#2) - 3500
Fuel tank capacity (l) - 80

SAFETY FEATURES

Anti-Lock Brakes (ABS)
Electronic Brake-Force Distribution (EBD)
Brake Assist System (BAS)
Electronic Stability Control (ESC) with Traction Control
Hill Start Assist (HSA)
Hill Descent Control (HDC)
Side Impact Protection Bars
Height adjustable 3-point seatbelts
Seat belt pre-tensioners)
Driver and front passenger airbags
Collapsible steering column
Auto door unlock in case of an accident
Park Distance Control (PDC) - Rear
Trailer Sway Control
Brake Override System (BOS)
Warning triangle kit

INFOTAINMENT

Audio input terminal: USB, auxiliary
No. of speakers - 6
Audio system - AM/FM Radio, CD player, USB, Clock, Bluetooth - Audio Streaming & Handsfree Phone
USB Port (Music Playback & Device Link) - Front
USB Charge Port - Front & Rear

WARRANTY / SERVICE INTERVALS

Warranty & roadside assistance - 3 Years / 100 000 km
Service intervals - 12 Months/15 000 km

TRANSMISSION

Transmission type - 6-Speed Automatic
Gear ratio: 1st - 3.6
Gear ratio: 2nd - 2.09
Gear ratio: 3rd - 1.488
Gear ratio: 4th - 1
Gear ratio: 5th - 0.678
Gear ratio: 6th - 0.58
Gear ratio: reverse - 3.732

FUEL CONSUMPTION

Combined cycle (l/100km) - 7.5
Combined CO2 emmisions (g/km) - 198
Fuel type / recommended grade - Diesel / Low Sulphur (50ppm)

ENGINE

Engine code - 4JJ1-TC HO
Displacement (cc) - 2999
No. of cylinders - 4
Compression ratios - 17.3:1
Bore x stroke (mm) - 95.4x104.9
No. of valves - 16
Power (kW) @ r/min - 130 @ 3600
Torque (Nm) @ r/min - 380 @ 1800-2800
Turbocharger
Intercooler

DIMENSIONS

Length (mm) - 5294
Width (mm) - 1860
Width incl. mirrors (mm) - 2132
Height (mm) - 1790
Wheelbase (mm) - 3095
Track front / rear (mm) - 1570 / 1570
Ground clearance (mm) - 220
Loadbox length (mm) - 1795
Loadbox width (mm) - 1535
Loadbox depth (mm) - 470
Approach angle (o) - 30
Departure angle (o) - 22.7
Breakover angle (o) - 22.4
Wading depth (mm) - 600
Rear overhang (mm) - 1301

WHEEL / TYRES

Tyre size - 255/60R18
Wheel type / size - Alloy 7.5J x 18
Full size spare wheel / size - Alloy 7.5J x 18
Turning Circle: tyres (m) - 12.8
Turning Circle: body (m) - 13.5

MASS / CAPACITY

Gross Vehicle Mass (GVM) (kg) - 3100
Gross Combined Mass (GCM) (kg) - 6000
Tare mass (kg) - 1900
Payload (kg) - 1150
Towing capacity (kg): Unbraked trailer (#2) - 3500
Towbar capacity / Rating (kg): Braked trailer (#2) - 3500
Fuel tank capacity (l) - 80

SAFETY FEATURES

Anti-Lock Brakes (ABS)
Electronic Brake-Force Distribution (EBD)
Brake Assist System (BAS)
Electronic Stability Control (ESC) with Traction Control
Hill Start Assist (HSA)
Hill Descent Control (HDC)
Side Impact Protection Bars
Height adjustable 3-point seatbelts
Seat belt pre-tensioners)
Driver and front passenger airbags
Collapsible steering column
Auto door unlock in case of an accident
Park Distance Control (PDC) - Rear
Trailer Sway Control
Brake Override System (BOS)
Warning triangle kit

INFOTAINMENT

Audio input terminal: USB, auxiliary
No. of speakers - 6
Audio system - AM/FM Radio, CD player, USB, Clock, Bluetooth - Audio Streaming & Handsfree Phone
USB Port (Music Playback & Device Link) - Front
USB Charge Port - Front & Rear

WARRANTY / SERVICE INTERVALS

Warranty & roadside assistance - 3 Years / 100 000 km
Service intervals - 12 Months/15 000 km

TRANSMISSION

Transmission type - 6-Speed Manual
Gear ratio: 1st - 4.942
Gear ratio: 2nd - 2.43
Gear ratio: 3rd - 1.428
Gear ratio: 4th - 1
Gear ratio: 5th - 0.749
Gear ratio: 6th - 0.634
Gear ratio: reverse - 4.597
4WD Rotary Switch Control - 2-Speed Transfer Case
Low range ratio - 2.482

FUEL CONSUMPTION

Combined cycle (l/100km) - 8
Combined CO2 emmisions (g/km) - 211
Fuel type / recommended grade - Diesel / Low Sulphur (50ppm)

ENGINE

Engine code - 4JJ1-TC HO
Displacement (cc) - 2999
No. of cylinders - 4
Compression ratios - 17.3:1
Bore x stroke (mm) - 95.4x104.9
No. of valves - 16
Power (kW) @ r/min - 130 @ 3600
Torque (Nm) @ r/min - 380 @ 1800-2800
Turbocharger
Intercooler

DIMENSIONS

Length (mm) - 5294
Width (mm) - 1860
Width incl. mirrors (mm) - 2132
Height (mm) - 1790
Wheelbase (mm) - 3095
Track front / rear (mm) - 1570 / 1570
Ground clearance (mm) - 220
Loadbox length (mm) - 1795
Loadbox width (mm) - 1535
Loadbox depth (mm) - 470
Approach angle (o) - 30
Departure angle (o) - 22.7
Breakover angle (o) - 22.4
Wading depth (mm) - 600
Rear overhang (mm) - 1301

WHEEL / TYRES

Tyre size - 255/60R18
Wheel type / size - Alloy 7.5J x 18
Full size spare wheel / size - Alloy 7.5J x 18
Turning Circle: tyres (m) - 12.8
Turning Circle: body (m) - 13.5

MASS / CAPACITY

Gross Vehicle Mass (GVM) (kg) - 3100
Gross Combined Mass (GCM) (kg) - 6000
Tare mass (kg) - 1975
Payload (kg) - 1075
Towing capacity (kg): Unbraked trailer (#2) - 3500
Towbar capacity / Rating (kg): Braked trailer (#2) - 2900
Fuel tank capacity (l) - 80

SAFETY FEATURES

Anti-Lock Brakes (ABS)
Electronic Brake-Force Distribution (EBD)
Brake Assist System (BAS)
Electronic Stability Control (ESC) with Traction Control
Hill Start Assist (HSA)
Hill Descent Control (HDC)
Side Impact Protection Bars
Height adjustable 3-point seatbelts
Seat belt pre-tensioners)
Driver and front passenger airbags
Collapsible steering column
Auto door unlock in case of an accident
Park Distance Control (PDC) - Rear
Trailer Sway Control
Brake Override System (BOS)
Warning triangle kit

INFOTAINMENT

Audio input terminal: USB, auxiliary
No. of speakers - 6
Audio system - AM/FM Radio, CD player, USB, Clock, Bluetooth - Audio Streaming & Handsfree Phone
USB Port (Music Playback & Device Link) - Front
USB Charge Port - Front & Rear

WARRANTY / SERVICE INTERVALS
